Indiana Metal Roof Repair-Top 4 Causes of Leaks

Tue, Apr 21, 2015 @ 03:14 PM | Perry

Metal roofs last a long time but they don't last forever. Here are the top four reasons that even properly installed metal roofs in Indiana leak.

1. Metal roofing screws.

  Roofing screws are responsible for the majority of leaks on metal roofs. Metal roofing screws seal water out by compressing a rubber washer at the base of the screw head. When the screw is driven into the metal roofing panel the rubber washer forms a "gasket" between the roofing panel and the screw head. It sounds simple enough but several things can go wrong like under driving screws, over driving screws, driving screws at the wrong angle and screws that missed the framing member.

metel_roof_screw_washerOver driven screws: In an attempt to endure a tight seal between the metal roofing and the screw head, many roofing companies will over drive the screw. The unneeded torque breaks the rubber washer and tends to spin it out to the side.

Under driven screws: These result when not enough torque on the screw is used to properly seal the rubber washer to the metal roofing panel. The rubber washer is never compressed and no gasket is formed.

wrong_angle_screw_for_metal_roofScrews driven at the wrong angle do not allow the rubber washer to sit flat on the metal roofing. Part of the screw is sealed but part is not.

Screws that have missed the metal strut or wood framing below have nothing to seal against. These can be hard leaks to find as many times the screw is there but without touching it you wouldn't know that it didn't hit anything and didn't seal.

   Even if the screws were installed correctly with the right amount of torque it doesn't mean that the rubber washer is safe. Hot Indiana summers followed by hard cold winters are unkind to the rubber washers. They degrade and loose their seal and it can be very difficult to distinguish which screw is leaking and which is not.

2. Stack flashings.

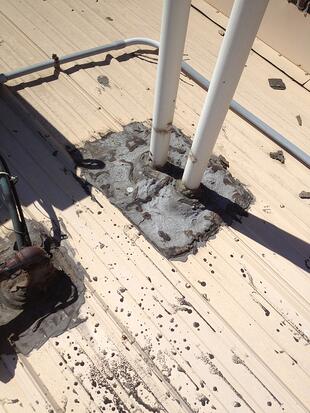

   Metal_Roof_Leak_Another area very prone to leaks on a metal roof is the area around stack flashing. Stack flashing are the "boots" or flashings around pipes that come out of the metal roof. HVAC units, air vents, and plumbing pipes all have to vent and come out through the metal roof. The stack flashing is how the pipe is water proofed. Most stack flashings are rubber or rubberized material that sits flat on the metal roofs and forms a seal but also "squeezes" around the pipe to form another seal. The movement in the metal roofing from expansion and contraction is always testing these seals. The sun also degrades the rubber flashings which last only about half the life time of the metal roof. The more caulking, sealant, or tar that is placed behind and around the stack, the more they seem to pond water and leak. It's a catch 22. Plan on replacing worn or rotten stack flashings in order to keep your building dry.

3. Missing sealants.

   Metal roof sealants that are installed in conjunction with a metal roof rarely last as long as the metal roofing panels do and need to be replaced with regular roof maintenance. Sealants under trims such as metal ridge caps and Z flahsings, around roof transitions, counter flashings, reglets and pitch pans will all need to be "topped off" from time to time as they wear. Use a metal roof sealant specifically made for metal roofing. Other types of silicone caulkings may not adhere to the paint on the roofing panel and trims.

4. Holes.

   metal_roof_rust_holeHoles can happen in metal roofing for a variety of reasons like tools being dropped, flying debris, tree branches, and even small rust holes can appear. Always keep an eye for holes when inspecting a metal roof. You won't always find holes or punctures but when you do it's generally an easy and quick fix and you can be fairly confident you found the leak you were looking for.
