Metal Roof Repair- 5 Common Causes of Metal Roof Leaks

Fri, Apr 8, 2016 @ 07:00 AM | Perry

Few Roofing Products offer the durability, strength, and performance of metal roofing. That being said metal roofs aren't indestructible and they can leak. Here are 6 common reasons even properly installed metal roofs can leak.


1Metal roofing screws

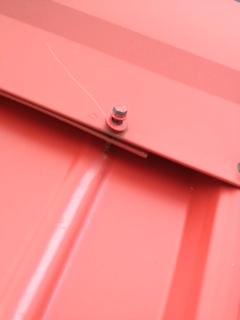

Roofing screws are responsible for the majority of leaks on metal roofs. Metal roofing screws seal water out by compressing a rubber washer at the base of the screw head. When the screw is driven into the metal roofing panel the rubber washer forms a “ gasket” between the roofing panel and the screw head. It sounds simple enough but several things can go wrong like under driving screws, over driving screws, driving screws at the wrong angle and screws that missed the framing member.

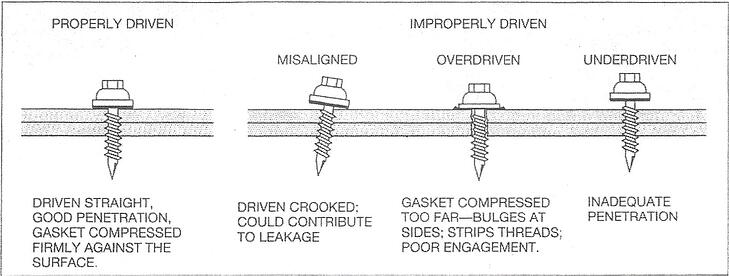

Over driven screws: In an attempt to ensure a tight seal between the metal roofing and the screw head many roofing companies will over drive the screw. The unneeded torch breaks the rubber washer and tends to spin it out to the side.

Under driven screws: These are a result of not enough torch on the screw to properly seat the rubber washer to the metal roofing panel. The rubber washer is never compressed and no gasket is formed.

Screws driven at the wrong angle: These don't allow the rubber washer to sit flat on the metal roofing. Part of the screw is sealed but part is not sealed.

Screws that have missed the metal strut or wood framing below: These have nothing to seal against. These can be hard leaks to find as many times the screw is their but without touching it you wouldn't know that it didn't hit anything and didn't seal.

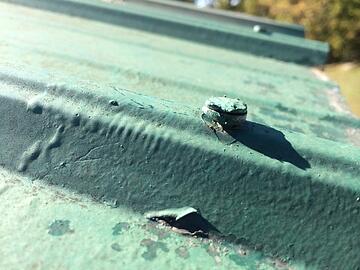

Even if the screws were installed correctly with the right amount of torch it doesn't mean that the rubber washer is safe. Hot  summers followed by hard cold winters are unkind to the rubber washers. They degrade and lose their seal and it can be very difficult to distinguish which screw is leaking and which is not.

metal_roof_screw.jpg Milton_Kentucky_Metal_Roofing.jpg

2. Stack flashings

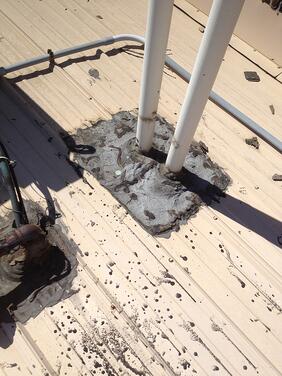

Metal_Roof_Leak_.jpgAnother area very prone to leaks on a metal roof is the area around stack flashings. Stack flashings are the “ boots “ or flashings around pipes that come out of the metal roof. HVAC vents, air vents, and plumbing pipes all have to vent and come through the metal roof. The stack flashing is how the pipe is water proofed. Most stack flashings are rubber or rubberized material that sits flat on the metal roof and forms a seal but also “squeezes” around the pipe to form another seal. The movement in the metal roofing from expansion and contraction is always testing these seals.

The sun also degrades the rubber flashings which last only about half the time of the metal roof. The more caulking, sealant, or tar that is placed behind and around the stack the more they seam to pond water and leak, it ’s a catch 22.

 Plan on replacing worn or rotten stack flashings in order to keep your building dry.



3.  Missing sealants

Metal roof sealants that are installed in conjunction with a metal roof rarely last as long as the metal roofing panels do and need to be replaced with regular roof maintenance. Sealants under trims such as metal ridge caps and Z flashings, around roof transitions, counter flashings, reglets, and pitch pans will all need to be “topped off” from time to time as they wear. Use a metal roof sealant specifically made for metal roofing. Other types silicone caulkings may not adhere to the paint on the roofing panel and trims. Metal roofing goes through a daily expansion - contraction cycle and if any sealants are to last they must be able to remain flexible and stretch with metal without breaking their seal.



4. Curb Flashings

HVAC units on Metal Roofs are usually sitting on curbs. Installing metal roof panels is a relatively easy process but it’s the flashing that really test a metal roofers ability. HVAC offer little room for error when fabricating the flashing and keeping a curb dry can be easier said than done. The up hill side of curbs and the two upper corners of the curb flashing are difficult areas especially on lager HVAC units. Water often gets trapped behind the unit and “stands “ behind the flashing which eventually erodes sealants and begins to leak. The more you caulk, seal, or tar the uphill side the more water it will hold. This Catch 22 is difficult to remedy without removing metal roofing panels and starting over.


5. Seams and over laps


Seams where 2 pieces of metal roofing over lap each other often leak because of a condition called capillary draw. Capillary Draw is when water can actually travel up hill between two tightly joined pieces of metal. Sealant or butyl tape between the two pieces of metal can break the capillary draw but if not used correctly can actually make leaks worse than if none had been used at all.
